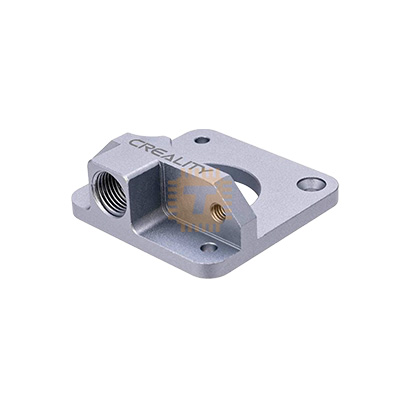

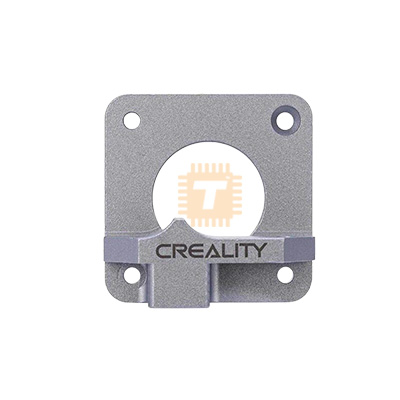

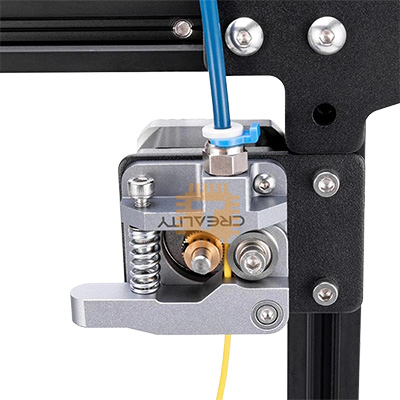

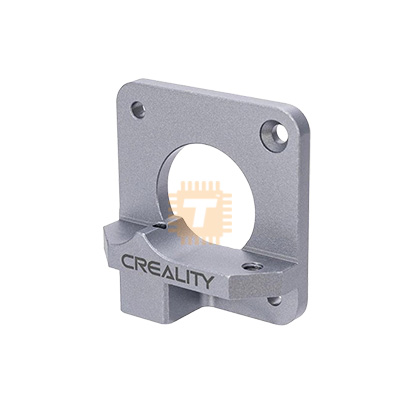

The Silver MK8 All-Metal Aluminum Extruder (Right Hand) is an upgraded direct-drive or Bowden filament feeder assembly engineered to replace fragile stock plastic extruders on desktop FDM 3D printers. Machined from high-grade anodized aluminum alloy, this right-handed feeder block provides rigid filament guidance, adjustable spring-loaded clamping pressure, and slip-free extrusion reliability for standard 1.75mm filaments.

Specification

• Extruder Type: MK8 Direct / Bowden Feed Mechanism
• Orientation Handedness: Right-Handed (Right-Side Tension Lever Arm)
• Filament Diameter Compatibility: 1.75mm
• Main Body Material: High-Strength CNC Anodized Aluminum Alloy
• Drive Gear Component: High-Traction 40-Tooth Brass / Steel Drive Gear
• Idler Bearing: U-Groove Ball Bearing (624ZZ Profile) for smooth filament tracking
• Pneumatic Fitting Standard: PC4-M6 Threaded Push-Fit Fitting (for 4mm OD PTFE Bowden Tube)
• Motor Compatibility: Standard NEMA 17 Stepper Motors (42mm x 42mm faceplate profile)
• Surface Finish: Silver Matte Anodized Coating (Corrosion and wear resistant)
• Printer Compatibility: Direct fit for Creality Ender-3 series, Ender-3 Pro, Ender-3 V2, Ender-5 series, CR-10 series, CR-10S, Anet A8, Wanhao Duplicator, Tevo Tornado, and most NEMA 17 MK8-based 3D printers.

Features

• Rugged All-Metal Construction: Replaces failure-prone stock plastic injection-molded tension arms that crack and cause hidden under-extrusion issues over time, ensuring long-term mechanical reliability.

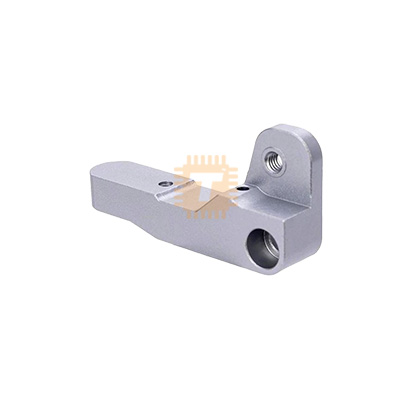

• Adjustable Spring Tension Mechanism: Equipped with a high-compression steel spring and tensioner adjustment screw, allowing fine-tuning of the idler clamping force to grip both rigid and flexible filaments without crushing them.
• Precision Filament Guide Channel: Machined with a tight-tolerance entry and exit path that constrains the filament tightly, reducing bending, buckling, and jams during high-retraction printing sequences.
• Smooth Idler Tracking: Utilizes a precision U-groove 624ZZ ball bearing that presses the filament securely against the drive gear teeth with minimal rotational friction.
• Included PC4-M6 Push Fitting: Features an integrated M6 threaded output port fitted with a pneumatic Bowden coupler for seamless connection to 4mm outer-diameter PTFE Bowden tubing.

Common Applications

• Stock Extruder Reliability Upgrade: Replacing cracked or worn-out factory plastic extruder arms on Creality Ender-3, CR-10, and similar open-source 3D printers.
• Flexible Filament (TPU) Handling: Providing the mechanical rigidity and constrained guide path required to feed semi-flexible filaments without jamming.
• High-Speed & Heavy-Retraction Printing: Maintaining steady, slip-free feeding during complex prints with frequent retractions and high volumetric flow rates.

Professional Installation and Maintenance Tips

• Do Not Over-Tighten the Pivot Screw: When fastening the aluminum tension arm to the base plate, do not over-torque the pivot bolt. The arm must pivot smoothly and freely on its brass sleeve washer; overtightening will cause the arm to bind and result in under-extrusion.
• Align Drive Gear Teeth with Filament Path: Before locking the grub screws on the NEMA 17 motor shaft, sight down the filament guide hole to ensure the grooved teeth of the drive gear align with the entry hole and idler bearing.
• Fine-Tune Spring Compression: Adjust the spring tension screw just tight enough to prevent the drive gear from grinding or slipping on the filament. Excessive spring pressure can flatten 1.75mm filament into an oval shape, causing drag inside the Bowden tube.
• Calibrate E-Steps After Installation: Although standard MK8 geometry uses the default 93 steps/mm setting on standard motors, always run an E-step calibration test (measuring 100mm of extruded filament) to account for slight drive gear diameter differences and achieve precise extrusion flow.
