Parameters and Features:

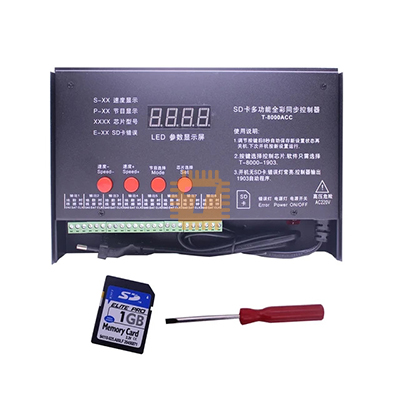

• Product name: addressable led controller
• Addressable program: Yes
• Working Voltage: 230VAC
• Ports Number: 8PCS
• Max Controller Pixels: 8192Pixels, 1024pixels/port
• Working Temperature: -30℃~85℃
• SD Card Support: Yes
• Memory: 1GB
• Format: Support FAT and FAT32
• Rainproof and dust-proof
• Support Multiple synchronization: Yes
• Can control 32-65536 grayscale, Gamma software correcting processing
• Light’s signal will be connected to DAT, clock wire will be connected to CLK, negative wire will b single wire and double wire IC type lights, when used for single wire IC types, there is no needing to connect to CLK wire

Support IC Types:

• Single wire IC: UCS1912, TM1803, TM1804, TM1809, TM1812, UCS2903, UCS2909, UCS2912, 8205,8206,16703, WS2811 etc.
• Double wire IC: MX5109, LPD6803, D705,P9803, MX8109, SM16726, P9813, LPD8806, WS2801
• New IC: TM1914, 9883Specification of memory SD card1.Type: SD card(If control much led lights, high speed SD card will be recommended)

Operation of button

• SPEED+: Accelerate the playing speed, max speed is S-19
• SPEED-: Slow down the playing speed, min speed is S-01
• MODE: Switch to programs
• SET: Set IC types, choose current IC type and wait it automatic save after 8 seconds. Then restart the power

Note: Don’t power off after choosing IC type and program, until wait about 8 second, all the settings will be saved automatically
