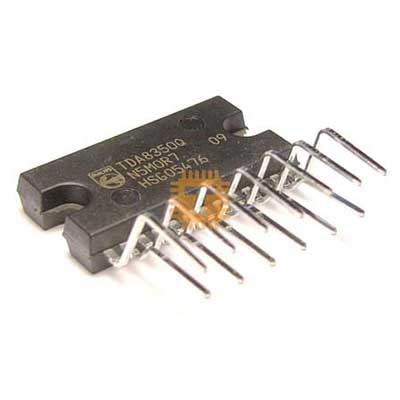

The TDA8350Q is a power circuit for use in 90° and 110° colour deflection systems for field frequencies of 50 to 120 Hz. The circuit provides a DC driven vertical deflection output circuit, operating as a highly efficient class G system and an East-West driver for sinking the diode modulator current.

Features:

•  Few external components
• Highly efficient fully DC-coupled vertical output bridge circuit
• Vertical flyback switch
• Guard circuit
• Protection against:

– short-circuit of the output pins

– short-circuit of the output pins to VP

• High EMC immunity due to common mode inputs
• Temperature (thermal) protection
• East-West output stage with one single conversion resistor.

Package: SIP-13

Datasheet: https://datasheetspdf.com/pdf-file/325240/NXP/TDA8350Q/1
