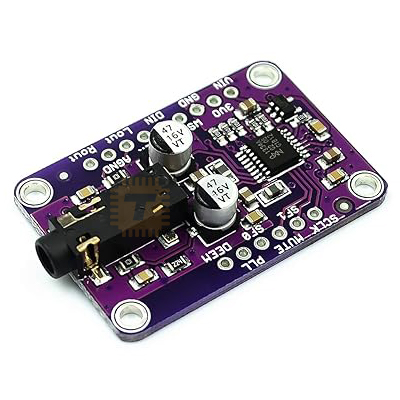

The UDA1334A I2S Stereo DAC Module is a compact and efficient audio decoder that converts digital audio signals into analog stereo outputs. It is particularly suitable for projects involving Raspberry Pi, Arduino, and other microcontrollers with I2S audio interfaces. This module is ideal for applications requiring high-fidelity audio playback, such as audio players, embedded systems, and DIY audio projects.

Features :

• Wide Voltage Compatibility: Operates with input logic levels from 3.3V to 5V, making it compatible with a variety of microcontrollers.
• Multiple Audio Formats Support: Supports standard I2S, as well as 16-bit, 20-bit, and 24-bit left-justified data formats.
• Built-in Phase-Locked Loop (PLL): Eliminates the need for an external master clock (MCLK); the module can generate the necessary clock signals internally, simplifying integration.
• Analog Output: Provides a clean, stereo line-level output suitable for direct connection to audio amplifiers or headphones.
• Mute and De-emphasis Control: Includes pins for muting the audio output and applying a de-emphasis filter, offering additional control over the audio signal.
• Compact Form Factor: Measuring approximately 40mm x 25mm, the module is small enough for integration into space-constrained projects.

Specifications :

• Chipset: NXP UDA1334A
• Supply Voltage: 3.3V to 5V DCe
• Interface: I2S (default), 16-bit, 20-bit, or 24-bit left-justified data
• Output: Stereo line-level analog audio

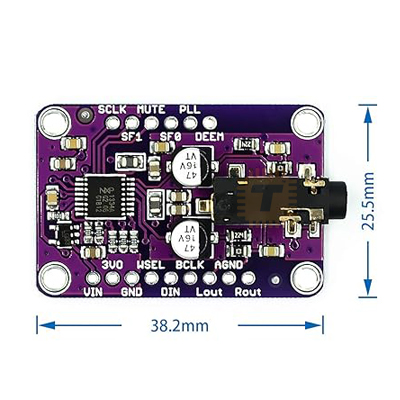

• Dimensions: 40mm (L) x 25mm (W) x 7.1mm (H)
• Weight: Approximately 4.6g

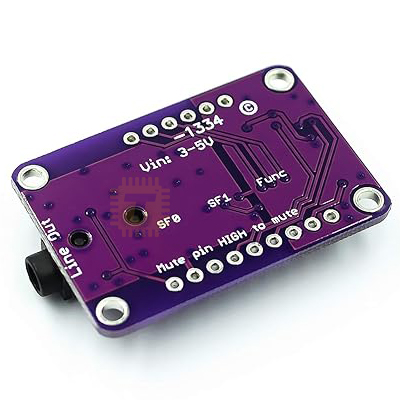

• Additional Pins: Mute, De-emphasis, PLL, SF0/SF1 (for data format selection), and AGND (analog ground)

Applications :

• Raspberry Pi Audio Projects: Enhance audio output for media centers or audio streaming applications.
• Arduino-Based Audio Systems: Integrate into custom audio systems for sound effects or music playback.
• DIY Audio Amplifiers: Use as a pre-processor in custom audio amplifier designs.
• Embedded Audio Devices: Implement in embedded systems requiring high-quality audio output.
