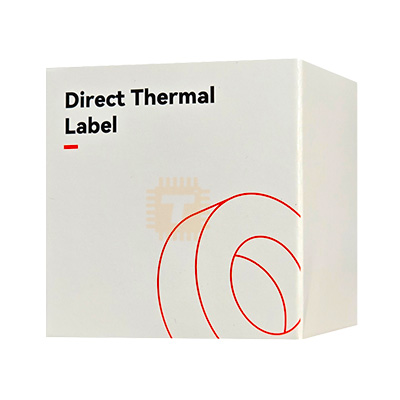

The NIIMBOT Thermal Cable Label Sticker White 25x78mm (100pcs) is an industrial-spec, direct thermal synthetic label roll engineered for structured network cabling, server rack wiring, telecommunications infrastructure, electrical distribution panels, and automotive harness identification. Manufactured from a multi-layer composite BOPP (Biaxially Oriented Polypropylene) film, it offers waterproof, oil-resistant, tear-proof, and scratch-resistant durability in dense wiring environments. Designed with a wide T-shape/P-type flag configuration (25mm × 38mm print area with a 40mm wrap-around tail), it provides space for two-sided text, serialized barcodes, and 2D Data Matrix codes while wrapping securely around Cat5e/Cat6/Cat7 Ethernet, optical fiber, and industrial power cables.

Specifications

• Brand / Series: NIIMBOT Official Smart Thermal Consumables (Cable Label Series)
• Printer Compatibility: NIIMBOT B1, B21, B3S, B203 (and all 50mm-capable NIIMBOT thermal printers)
• Smart Media Feature: Integrated Smart RFID Chip in spool core (Auto-template matching in app)
• Label Configuration / Style: P-Type / T-Type Cable Flag & Wrap-Around Label
• Label Dimensions (Unfolded Flat): 25 mm × 78 mm (Approx. 0.98" × 3.07")
  • Flag Printing Area: 25 mm × 38 mm (Folds double-sided into 25 mm × 19 mm visible flag)
  • Cable Wrap-Around Tail: Approx. 10 mm Width × 40 mm Length
• Roll Capacity / Quantity: 100 Labels per Roll
• Color / Background: Gloss White (Opaque white surface for high-contrast black printing)
• Print Technology: Direct Thermal (No Ink, Toner, or Carbon Ribbon required)
• Material Substrate: High-Tensile Synthetic Polypropylene (BOPP) Thermal Film
• Adhesive Type: High-Tack Industrial Grade Permanent Acrylic Pressure-Sensitive Adhesive
• Lamination / Coating: Protective Top-Coated Thermal Barrier (Water, Oil, and Alcohol Resistant)
• Tear Resistance: High Tear Strength (Non-tearable synthetic polymer base)
• Operating / Service Temperature: -20°C to +70°C (-4°F to 158°F)
• Minimum Application Temperature: +5°C
• Roll Core Diameter: Standard 12.7 mm (0.5 Inch) / 25.4 mm (1.0 Inch) core with integrated RFID tag
• Net Roll Weight: Approx. 35 g to 45 g

Features

• Automatic RFID Recognition: Embedded RFID chip in the spool core automatically communicates with the printer, auto-selecting label dimensions, margins, and print orientation in the NIIMBOT app without manual calibration.
• Multi-Layer Environmental Resistance: Coated with a protective barrier layer that resists water submersion, industrial lubricating oils, moisture, and mild rubbing alcohol without ink fading or paper softening.
• Tear-Proof Synthetic Construction: Tough synthetic BOPP substrate prevents stretching, splitting, or tearing when pulled through cable conduits, raceways, or tight wire bundles.
• Non-Degrading Permanent Adhesive: Formulated with strong pressure-sensitive adhesive that bonds tightly to PVC, PE, Teflon, and silicone cable jackets without lifting, curling, or leaving gummy residue if repositioned during install.
• Dual-Sided Flag Identification: Fold-over design allows identical text, port numbers, or barcodes to be printed on both sides of the flag, ensuring high visibility from any viewing angle in dense server patch bays.

Common Applications

• Data Centers & Server Racks: Labeling Cat5e, Cat6, Cat6a, Cat7 RJ45 patch cables, trunk lines, and SFP+ fiber optic patch leads.
• Telecommunications & Fiber Optics: Identifying drop cables, distribution pigtails, FTTH fiber enclosures, and splice trays.
• Electrical Distribution Boards: Circuit breaker circuit identification, phase marking, neutral/ground wire labeling, and control panel wire bundling.
• Audio/Visual & Stage Production: Organizing multi-channel audio snakes, XLR cables, DMX lighting cables, and HDMI/SDI video feeds.
• Automotive & Marine Harnesses: Tagging ECU wiring looms, auxiliary relay harnesses, switch panel feeds, and sensor lines.

Usage Tips

• Application Method (CRITICAL):
  • Step 1: Peel the printed label cleanly from the glassine backing liner.
  • Step 2: Wrap the narrow tail strip (the bottom 40mm section) snugly around the target cable to anchor the label securely in position.
  • Step 3: Fold the wide printed flag section in half over itself so that the adhesive faces meet flush, forming a rigid, double-sided identification flag.
• Surface Cleanliness: Ensure the cable jacket is free from dust, pulling lubricant, oil, and moisture before applying the tail to achieve maximum adhesive bonding.
• App Template Selection: If using an RFID-enabled NIIMBOT printer (B1, B21), the official app will identify the "25×78mm Cable Label" automatically. If connecting via PC client without RFID, manually select the 25×78mm Cable Label Template to prevent print offset.
• Layout Optimization: Use the "Cable Flag" layout mode in the NIIMBOT software. This automatically mirrors the text or barcode so that both sides of the folded flag display upright, readable information.
• Storage Recommendations: Store unused label rolls inside their sealed foil barrier bag in a cool, dry location away from direct sunlight, high heat (>45°C), and solvent vapors to preserve thermal coating sensitivity.
