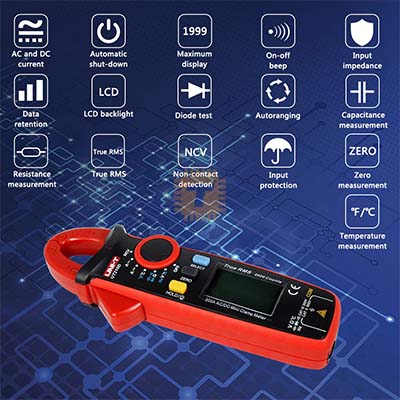

The UT210 series Mini Clamp is provided with the features of high reliability, security, auto range, and small size. It can test the small current signal precisely; the chip itself has a VFC start-up model; and there is a specific filter circuit inside that can filter the high-frequency interference signal and ensure the accuracy of the measurement. It can be applied in situations such as variable-frequency voltage and current with VFC. It has the design of full overload protection along with the unique exterior design,which makes it a remarkable new practical electric testing instrument. The UT210 series Mini Clamp is an ideal tool that can be applied to colleges and universities, melting, telecommunications, manufacturing, oil,defense,power, foundry, circuit of power equipment inspection, and maintenance and repairs.

Specifications:

• AC current (A): 200A  ±(2.5%+8)
• DC current (A): 200A  ±(2%+3)
• AC voltage (~V): 600V  ±(1%+3)
• DC voltage (V): 600V  ±(0.7%+3)
• Resistance (Ω): 20MΩ  ±(1%+2)
• Frequency (Hz): 60kHz  ±(0.1%+4)
• Capacitance (F): 20mF  ±(4%+5)
• Temperature: -40~1000℃  ±(1%+3)

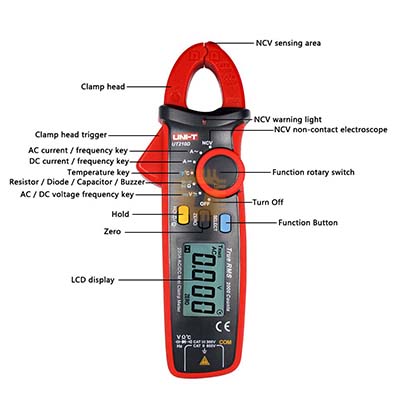

Features:

• Display count: 2000
• Continuity buzzer: Yes
• Auto range: Yes
• Jaw opening: 17mm
• Diode test: Yes

General Characteristics:

• Power: 1.5V battery x 2
• Display: 39.3mm x 26.5mm (Approx.)
• Product colors: Red and grey
• Product net weight: 170g
• Product size: 175mm x 60mm x 33.5mm (Approx.)
• Accessories: Batteries, test leads, point-contact temperature probe
• Standard individual packing: Gift box, English manual, carrying bag
