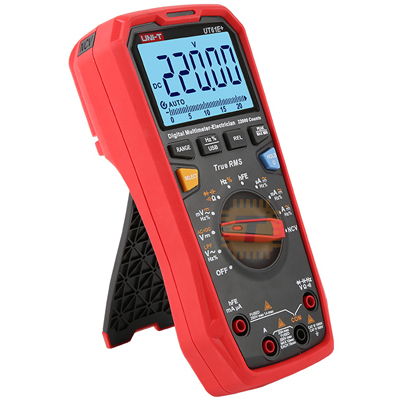

The UNI-T UT61E+ is a high-precision, True RMS digital multimeter renowned for its accuracy, extensive measurement capabilities, and advanced features, making it a strong choice for professional electricians, engineers, and hobbyists alike.

Features :

• True RMS Measurement — Accurate readings on non-sinusoidal waveforms.
• Backlight & Data Hold — Easy to read in low-light conditions.
• Max/Min/Relative Modes — Capture dynamic measurement ranges and compare values.
• USB Communication — Enables logging and PC connectivity.
• Audible/Visual Alarms — Provides notifications when measuring high voltage, current, or temperature.
• Additional Functions: Diode testing, continuity buzzer, hFE transistor testing, low-pass filter (LPF) for noise rejection, NCV detection.

Specifications :

• Power: 4 × AAA batteries (1.5 V each)
• Display Resolution: Exceptionally detailed 22,000-count display.
• Voltage Measurement:
  • DC Voltage: up to 1000 V with high accuracy (±0.05% + 5 digits).
  • AC Voltage: up to 1000 V, True RMS, with accuracy ±0.8% + 10 digits.
  • AC + DC combined mode: available in UT61E+, allowing measurement of complex waveforms.
• Current Measurement:
  • DC Current: up to 10 A (±0.5% + 10 digits).
  • AC Current: up to 10 A (±0.8% + 10 digits), True RMS.
• Resistance: up to 220 MΩ (±0.5% + 10 digits).
• Capacitance: measures up to 220 mF with ±3% + 5 digits accuracy.
• Frequency: up to 220 MHz (±0.01% + 5 digits).
• Duty Cycle: 0.1%–99.9%, accuracy ±2% + 5 digits.
• Bandwidth: 40 Hz to 10 kHz, ideal for various signal types.
• Safety Ratings: CAT III 1000 V and CAT IV 600 V
• Connectivity: USB interface

Includes :

• Multimeter unit
• Test leads (gold-plated)
• USB cable
• Multi-purpose socket (specific to UT61E+)
• Battery
• User manual and certificate of conformity
