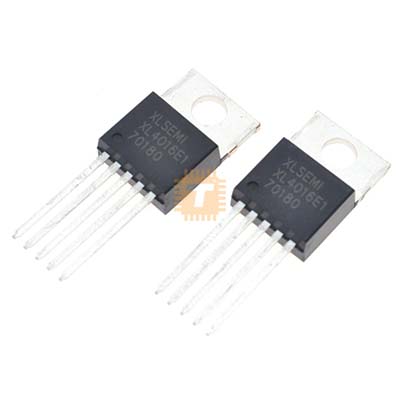

The XL4016 is a 180 kHz fixed-frequency PWM buck (step-down) DC/DC converter capable of driving an 8 A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and includes internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An over-current protection function is built in. When the short protection function is activated, the operation frequency will be reduced from 180 kHz to 48 kHz. An internal compensation block is built in to minimize the external component count.

Features:

• Wide 8V to 40V Input Voltage Range
• Output Adjustable from 1.25V to 36V
• Maximum Duty Cycle 100%
• Minimum Drop Out 0.3V
• Fixed 180KHz Switching Frequency
• 8A Constant Output Current Capability
• Internal Optimize Power MOSFET
• High efficiency up to 96%
• Excellent line and load regulation
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function
• Built in input over voltage protection

Applications:

• LCD Monitor and LCD TV
• Portable instrument power supply
• Telecom / Networking Equipment

Datasheet: https://datasheetspdf.com/pdf-file/839856/Xlsemi/XL4016/1
