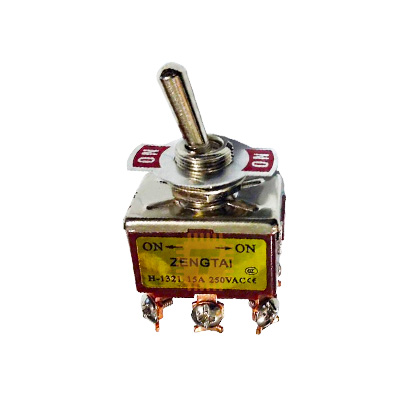

The Original ZENGTAI H-1321 6-Pin Heavy-Duty ON-ON Toggle Switch (15A 250VAC / 20A 125VAC) is an industrial-grade double-pole double-throw (DPDT / 2 Form C) panel-mount mechanical switch engineered for heavy-duty AC mains changeover, dual-circuit isolation, phase reversal, and high-current DC switching. Constructed with a solid nickel-plated metal bat lever, a high-dielectric flame-retardant phenolic/bakelite insulating body, and heavy-duty silver alloy contacts, it provides positive mechanical detent action with low contact resistance across both poles. Equipped with six heavy-duty brass screw clamp terminals and standard 12mm threaded mounting hardware with an anti-rotation locating ring, the ZENGTAI H-1321 is widely utilized in industrial machinery, DC motor polarity reversing, generator/mains transfer systems, audio power equipment, marine switch panels, and custom electrical control enclosures.

Specifications

• Brand / Manufacturer: ZENGTAI (Original Heavy-Duty Switch Series)
• Model / Part Number: H-1321 (H1321)
• Switch Type: Heavy-Duty Industrial Bat Lever Toggle Switch
• Circuit / Pole Configuration: DPDT (Double Pole, Double Throw - 6 Pins / 2 Poles / 2 Form C)
• Switching Function / Operation: 2-Position Maintained / Latching Changeover (ON - ON)
• Electrical Contact Ratings:
  • AC Rating: 15A @ 250V AC / 20A @ 125V AC
  • DC Rating: 15A @ 12V–30V DC (General inductive/resistive switching)
• Contact Material: Silver Alloy Contacts (High electrical conductivity and arc resistance)
• Contact Resistance: ≤ 50 mΩ (Initial at 1A DC)
• Insulation Resistance: ≥ 100 MΩ (at 500V DC)
• Dielectric / Breakdown Voltage: 1500V AC (50/60 Hz for 1 minute between non-connected parts)
• Mechanical Life Expectancy: ≥ 50,000 Cycles
• Electrical Life Expectancy: ≥ 10,000 Operations (at full rated load)
• Actuator Style: Heavy-Duty Nickel-Plated Solid Metal Bat Lever
• Body / Housing Material: High-Dielectric Heat-Resistant Phenolic / Bakelite Casing
• Termination / Connection Type: 6x Heavy-Duty M3.5 Brass Screw Clamp Terminals (Accepts spade lugs, ring terminals, or bare wire)
• Mounting Method: Panel Mount via Threaded Bushing
• Mounting Hole / Cutout Diameter: 12.0 mm to 12.2 mm (Standard 1/2-inch panel hole)
• Bushing Thread: M12 × 0.75 mm
• Operating Ambient Temperature: -25°C to +85°C
• Included Hardware: 2x Hex Nuts, 1x Internal Tooth Lock Washer, 1x ON-ON Legend Faceplate Nameplate
• Dimensions: Approx. 33 mm × 20 mm × 19 mm (Body only, excluding lever and terminals; Total height approx. 55 mm)
• Weight: Approx. 45 g

Features

• High 15A / 250VAC Heavy-Current Capacity: Engineered to handle high-power dual-phase AC circuits, industrial heaters, and heavy DC motor loads without contact pitting or overheating.
• DPDT 2-Position Changeover (ON-ON): Controls two completely independent circuits simultaneously, enabling dual-line switching (Live & Neutral transfer) or DC motor polarity reversal.
• Solid All-Metal Bat Lever: Delivers crisp tactile feedback and distinct mechanical detent snap, ensuring reliable operation even with gloved hands in industrial environments.
• Heavy-Duty Screw Terminals: Six high-torque brass screw terminals with captive washers accommodate direct wire clamping or secure fastening with M3.5 ring/fork crimp lugs without soldering.
• Durable Phenolic Housing: High-temperature, flame-retardant insulating base offers superior dielectric strength and high vibration resistance under continuous duty.
• Complete Panel Mounting Kit: Includes dual locking hex nuts, lock washer, and an aluminum "ON-ON" indicator nameplate with an anti-rotation locating tab.

Common Applications

• DC Motor Polarity Reversing: Direct Forward/Reverse directional control for linear actuators, winches, power jacks, and DC gearmotors.
• Dual-Line AC Power Transfer: Simultaneous switching of both Live and Neutral conductors between Mains Grid and Generator/Inverter backup sources.
• Industrial Machinery & Automation: Dual-circuit mode selectors (Auto / Manual), phase-switching, and multi-rail power routing.
• Audio Amplifiers & Pro Audio: Stereo speaker channel selectors, dual-transformer secondary switching, and standby/run line switching in high-power audio systems.
• Automotive, Marine & 4x4 Rigs: Dual battery isolation/transfer systems, dual-speed blower motor controls, and auxiliary lighting circuits.

Usage Tips

• Terminal Layout (DPDT Pinout): The switch features two parallel columns of 3 terminals each. The two center terminals are the **Common (COM)** inputs for Pole 1 and Pole 2. In Position 1, both COM terminals connect to the top pair of terminals; toggling the lever connects both COM terminals to the bottom pair.
• DC Motor Reversing Wiring: To reverse a DC motor, connect the DC power supply (+ and -) to the two center common terminals. Connect the motor across the top two terminals, and add crisscross jumper wires connecting the top terminals to the opposite bottom terminals.
• Secure Terminal Fastening: For high-vibration automotive or industrial machinery environments, crimp stranded wires with **M3.5 fork (spade) or ring terminals** before tightening down the brass screw clamps to ensure low contact resistance and prevent loose wire fraying.
• Panel Anti-Rotation Tab: Align the included ON-ON legend nameplate keying tab with your panel notch to prevent the switch body from twisting during actuation.
• Inductive Load De-rating: When switching heavy inductive loads (transformers, AC induction motors, large solenoids), de-rate the continuous operating current to **50%–60% of rated capacity (approx. 8A–10A)** to handle turn-off voltage transients and inrush currents.
• Optional Weatherproof Boot: For outdoor, marine, or dusty workshop installations, an optional M12 threaded silicone/rubber toggle boot seal can be screwed over the metal lever to achieve an IP65 splash-proof seal.
