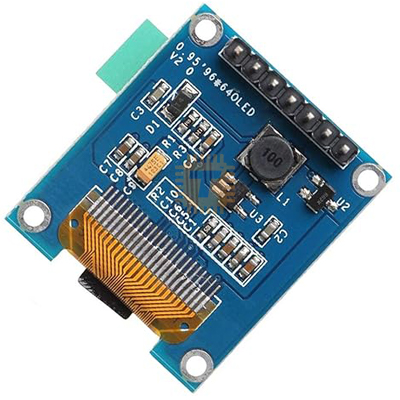

The SSD1331 0.95-inch 96x64 OLED Display Module is a compact, high-performance, full-color OLED screen designed for embedded systems, wearables, and portable electronics. Featuring vibrant visuals, a wide viewing angle, and low power consumption, it is ideal for applications requiring clear and colorful displays in a small form factor.

Features :

• Display Type: Passive Matrix OLED (PMOLED)
• Resolution: 96 × 64 pixels
• Color Depth: 65,536 colors (16-bit RGB)
• Interface Options: 4-wire SPI, 6800/8080 8-bit parallel interfaces
• Viewing Angle:160°
• Contrast Ratio: Typically 1000:1
• Brightness: Approximately 100 cd/m²
• Self-Emitting: No backlight required, leading to thinner design and lower power consumption
• Fast Response Time: Suitable for dynamic content display
• Driver IC: SSD1331

Specifications :

• Display Size: 0.95 inches (diagonal)
• Active Area: 20.14 mm × 13.42 mm
• Module Dimensions: 25.70 mm × 22.20 mm × 1.20 mm
• Pixel Pitch: 0.07 mm × 0.21 mm
• Operating Voltage: Typically 2.8 V; compatible with 3.3 V and 5 V systems
• Operating Temperature Range: -30°C to 70°C
• Storage Temperature Range: -40°C to 80°C
• Connection Type: Soldering FPC (Flexible Printed Circuit)
• compatible with various microcontrollers and development platforms, including:
  • Arduino
  • Raspberry Pi
  • STM32
  • PIC
  • AVR
  • 8051
  • ARM

Applications :

• Wearable devices
• Portable medical equipment
• Smart home interfaces
• Industrial control panels
• Consumer electronics
• DIY electronics projects
