A relay is an electrically operated switch. It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals. The switch may have any number of contacts in multiple contact forms, such as make contacts, break contacts, or combinations thereof.

Specifications:

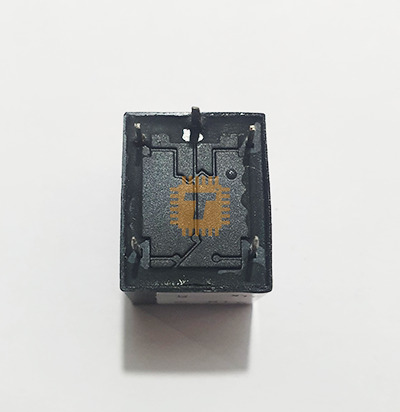

• Model Number: SRD-06VDC-SL-C
• Coil Power: 6V DC
• Pin Out: 5 Pin - Coil - COM - NC - NO
• Nominal Coil Power: 0.36w, 0.45W
• Contact Capacity: 10A 250VAC/10A 125VAC 10A 30VDC/10A 28VDC
• Insulation Resistance: 100MΩ.500VDC
• Operate Time: 15ms/10ms
• Terminal Type: PCB
• Contact Load: High Power
• Product name:: 6V DC Electrical Relay SRD-05VDC-SL-C
• Contact Ratings: 1A,1C
• Contact Resistance: 100mΩ(at 10A 5VDC)
• Contact Material: Silver Alloy
• Size: Miniature
