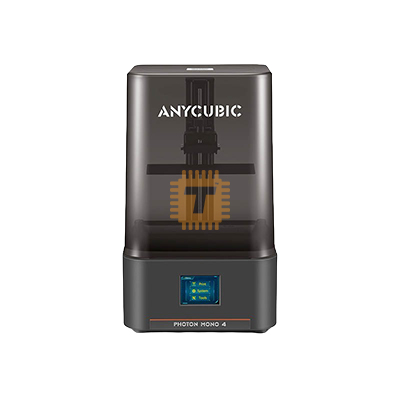

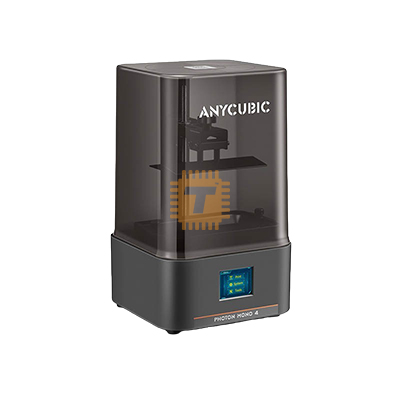

The Anycubic Photon Mono 4 Ultra is a next-generation resin 3D printer designed for users who require ultra-high detail, faster print speeds, and intelligent printing features. Equipped with a 7-inch 10K monochrome LCD, this printer delivers outstanding precision and surface quality, making it an excellent choice for miniatures, jewelry, dental models, prototypes, and highly detailed functional parts.

Key Features:

• Ultra-High Resolution Printing: At the core of the Photon Mono 4 Ultra is a 7″ 10K monochrome LCD screen with a resolution of 9024 × 5120 and an ultra-fine 17 × 17 micron pixel size. This allows the printer to reproduce extremely fine details, sharp edges, and smooth surfaces that are difficult to achieve with lower-resolution resin printers.
• High-Speed Performance: The Photon Mono 4 Ultra is designed not only for precision but also for speed. With optimized motion control and light efficiency, it significantly reduces print time while maintaining accuracy.
• Large Build Volume: With a generous build volume of 153.4 × 87 × 165 mm (2.2 liters), the printer can handle larger models or multiple smaller prints in a single job, increasing productivity and efficiency.
• Intelligent Printing System: The Photon Mono 4 Ultra includes multiple smart features that enhance reliability and reduce print failures:
  • 360° intelligent self-check system
  • Failed print detection and automatic pause
  • Resin level and residue monitoring
  • Release film lifespan management
  • Power-loss resume function
  • 4-point manual leveling system for stable first-layer adhesion
• User-Friendly Operation: A 4.3-inch HD touchscreen with a clean, intuitive interface allows easy control and monitoring of the printing process. The system supports multiple languages and offers straightforward access to settings, file management, and print status.
• Wide Resin Compatibility: The printer supports a broad range of 405 nm UV resins, including:
  • Standard resin
  • High-speed resin
  • Water-washable resin
  • ABS-like resin
  • Plant-based and specialty resins
• Connectivity & Software: The Photon Mono 4 Ultra supports USB connectivity and is compatible with Anycubic slicing software as well as selected third-party slicers. The workflow is optimized for smooth slicing, previewing, and file transfer.

Specifications:

• Printing Technology: LCD MSLA Resin Printing
• LCD Screen: 7″ 10K Monochrome
• Resolution: 9024 × 5120
• Pixel Size: 17 × 17 µm
• Build Volume: 153.4 × 87 × 165 mm
• Layer Height: 0.02 – 0.15 mm
• Printing Speed: Up to 80 mm/h (standard), up to 120 mm/h (high-speed resin)
• Light Source: COB UV with Fresnel lens
• Touch Screen: 4.3″ HD
• Leveling: 4-point manual
• Power Rating: Approx. 66 W
• Resin Type: 405 nm UV resin compatible

Ideal Applications

• Miniatures and figurines
• Jewelry and mold making
• Dental and medical models
• Engineering prototypes
• High-detail functional parts
