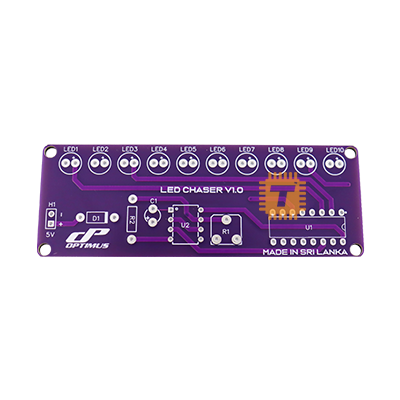

The LED Chaser Circuit is a beginner‑friendly electronic kit that creates a dynamic running‑light effect using ten LEDs. Powered by an NE555 timer and a CD4017 decade counter, it produces the classic Knight Rider scanning pattern, making it both an engaging learning tool and a practical lighting effect generator. The skipping forward‑and‑backward sequence of LEDs provides a clear visual demonstration of timing circuits and counters in action. This kit is highly recommended for students and hobbyists as a foundation before exploring programmable platforms like Arduino.

Specifications:

Key features:

• Skipping forward-and-backward pattern for dynamic animation
• Classic Knight Rider effect when clock pulses are fast
• Hands-on learning of timing circuits and digital counters
• Ideal for electronics education and visual lighting projects
• Builds foundational skills before transitioning to Arduino or microcontroller platforms
• Requires soldering iron, soldering lead, and 5V power supply

User Guide:

If you have any issues, please contact the manufacturer directly at [email protected].
