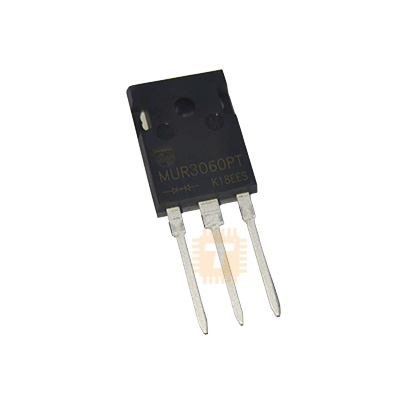

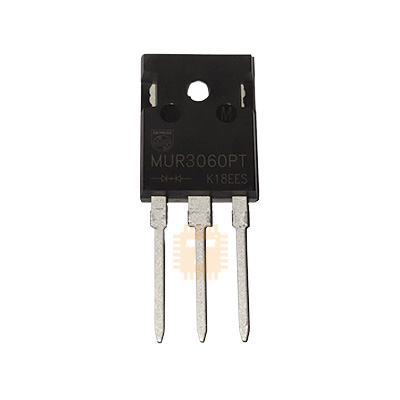

The MUR3060PT is a dual-chip, center-tap ultra-fast recovery power rectifier diode housed in a heavy-duty TO-247 (TO-218 / TO-3P compatible) through-hole package. Engineered specifically for high-voltage, high-frequency switch-mode power conversion, the MUR3060PT features a repetitive peak reverse voltage rating of 600V, a total continuous forward current capacity of 30A (15A per diode leg), low forward voltage drop, and an ultra-fast reverse recovery time (t_rr) of 60ns. It is widely used in high-efficiency switch-mode power supplies (SMPS), solar inverters, high-power DC-DC converters, motor drive freewheeling circuits, and industrial battery charging systems.

Specifications

• Brand / Manufacturer: ON Semiconductor / Vishay / Industry Standard
• Part Number / Marking: MUR3060PT / U3060PT
• Diode Configuration: Dual Common Cathode (Center Tap)
• Maximum Repetitive Peak Reverse Voltage (V_RRM): 600V
• Working Peak Reverse Voltage (V_RWM): 600V
• Maximum DC Blocking Voltage (V_R): 600V
• Average Rectified Forward Current (I_F(AV)): 30A Total (15A per Diode Leg at T_C = 145°C)
• Non-Repetitive Peak Forward Surge Current (I_FSM): 150A (8.3ms half sine-wave per leg)
• Peak Repetitive Forward Current (I_FRM): 30A per leg (Rated V_R, Square Wave, 20kHz at T_C = 145°C)
• Maximum Instantaneous Forward Voltage (V_F): 1.5V (at I_F = 15A, T_C = 25°C) / 1.2V (at I_F = 15A, T_C = 150°C)
• Maximum Reverse Recovery Time (t_rr): 60ns (at I_F = 1.0A, di/dt = 50A/µs)
• Maximum Reverse Leakage Current (I_R): 10µA @ T_J = 25°C / 1.0mA @ T_J = 150°C
• Operating Junction & Storage Temperature Range: -65°C to +175°C
• Thermal Resistance, Junction-to-Case (R_θJC): 1.5°C/W per diode leg
• Package / Case: TO-247 / SOT-93 (TO-218AC) (Pin 1: Anode 1, Pin 2: Common Cathode / Tab, Pin 3: Anode 2)

Features

• Ultra-Fast 60ns Recovery Time: Substantially reduces diode reverse-recovery switching losses, minimizing EMI emissions and increasing converter efficiency at high frequencies.
• High 600V Reverse Blocking Voltage: Provides ample safety headroom against high-voltage ringing transients in off-line power supplies and solar inverters.
• Dual Center-Tap Configuration: Integrates two matched 15A diodes with a common cathode connection to simplify full-wave secondary rectification circuits and reduce PCB component count.
• High Operating Junction Temperature (175°C): Delivers exceptional thermal headroom, ensuring long-term reliability in high-temperature industrial environments.
• Glass Passivated High-Temperature Junction: Ensures minimal reverse leakage and robust avalanche withstand capability over prolonged operational lifespans.
• Heavy-Duty TO-247 Package: Large copper mounting tab provides direct heatsink mounting for superior thermal management under heavy continuous current loads.

Common Applications

• High-Voltage SMPS Secondary Rectification: Secondary output rectification in server power units, telecom rectifiers, and high-wattage industrial power supplies.
• Solar Inverters & UPS Systems: High-frequency secondary rectification and energy recycling stages in renewable power systems and battery backup units.
• High-Power DC-DC Converters: Catch and freewheeling diode stages in industrial buck, boost, and bridge topologies.
• Industrial Battery Chargers: Fast AC-DC rectification stages for electric vehicle (EV) charging stations and high-current industrial battery packs.
• Motor Drives & Inductive Clamping: High-speed freewheeling protection across inductive motors, large solenoids, and magnetic actuators.

Usage Tips

• Heatsink Installation: Always fasten the TO-247 package securely to an adequately sized aluminum heatsink using thermal paste. Use a silicone/mica insulation sheet and shoulder washer if the heatsink must remain electrically isolated from the center Cathode.
• Single 30A Diode Configuration: To utilize the full 30A continuous rating in a single-ended output circuit, connect Pin 1 (Anode 1) and Pin 3 (Anode 2) together in parallel on the PCB.
• RC Snubber Protection: Place a small RC snubber network across each diode leg to absorb high-frequency voltage spikes and ringing caused by transformer leakage inductance.
• PCB Trace Optimization: Keep high-current loops between the transformer secondary, the diode terminals, and the output filter capacitors short and wide to minimize parasitic inductance and EMI noise.
