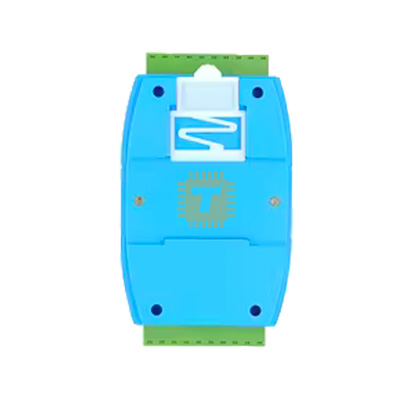

The WELLPRO WP9038ADAM is an industrial-grade, multi-functional remote I/O data acquisition module utilizing the standard RS-485 communication bus and the widely adopted Modbus RTU protocol. This robust module features a high-density configuration of 6 Analog Inputs (AI), 4 Digital Inputs (DI), and 4 Digital Outputs (DO) in a single compact housing. It serves as a reliable bridge between field sensors, actuators, and master controllers like PLCs, SCADA systems, or embedded computers (Raspberry Pi/industrial PCs) over long-distance wiring networks.

Specification

• Product Model: WP9038ADAM
• Communication Interface: RS-485 (Standard two-wire differential serial bus)
• Protocol Support: Modbus RTU
• Baud Rate Range: 1200 to 19200 bps (Configurable; Default is usually 9600 bps, 8 Data Bits, 1 Stop Bit, No Parity)
• Device Address Range: 1 to 247 (Software configurable via Modbus registers)
• Input / Output Configuration:
  • 6 Analog Inputs (AI): 4 - 20mA current loop configuration (Standard variant; voltage variants available) with 12-bit effective resolution
  • 4 Digital Inputs (DI): Passive dry contact or active wet contact (NPN/PNP level adaptive)
  • 4 Digital Outputs (DO): Open-collector Transistor Low-Side Outputs (Sink outputs, typically rated up to 30V / 500mA per channel)
• Operating Supply Voltage: DC 9V to 30V (Reverse polarity protected)
• Power Dissipation: Less than 2W typical
• Isolation Protection: Photoelectric isolation for inputs/outputs and communication circuits to suppress surge interference
• Mounting Profile: Standard 35mm DIN Rail mount or screw surface mount

Features

• High-Density Mixed Signal Arrays: Packs AI, DI, and DO channels together in one space-saving footprint. This simplifies remote field box distribution layouts by removing the need for separate dedicated analog and digital modules.
• Industrial Electrical Isolation: Outfitted with robust optocouplers and electrical barriers between the data bus, power rail, and I/O channels. This guards your central PLC or computer host from field ground loops, lightning spikes, and switching noise surges.
• Flexible Open-Collector Digital Outputs: The 4 NPN digital outputs function as grounding switches (Sink drivers). This enables them to drive external components across independent voltage levels (e.g., triggering a 24V industrial relay or a 5V indicator signal) without mixing operational voltages.
• Visual Status Indicators: The front display face features an array of diagnostic LEDs tracking active Power, Communication Data flow, and individual Digital Input/Output channel states, allowing for quick visual system debugging.

Common Applications

• Industrial Process Telemetry: Gathering analog 4 - 20mA current data streams from remote pressure transmitters, flowmeters, and thermal probes while operating inductive valves simultaneously.
• Building Automation & Environmental Monitoring: Interfacing localized HVAC climate sensors, limit switches, water level floats, and signaling alarms back to a centralized SCADA server room.
• Distributed Machine Automation: Serving as a DIN-rail remote expansion node inside electrical sub-panels to monitor assembly line states and actuate solenoids without running thick multi-conductor wiring harnesses back to the main controller.
• Energy Management Systems: Tracking relay positions, fault status lines, and current monitoring loops inside power distribution substations.

Professional Usage & Deployment Tips

• Implement a Dedicated RS-485 Bus Termination: For long cable runs (exceeding 100 meters) or high-interference factory layouts, always place a 120Ω termination resistor across the RS-485 A and B signal lines at the physical end-points of the network line. This prevents electrical signal reflections from corrupting data bytes.
• Ensure Proper Current Loop Return Path: When wiring standard 4 - 20mA current transmitters to the 6 Analog Input pins, pay close attention to the sensor's power distribution topology. For two-wire passive loop sensors, power must run from the positive DC supply rail, pass through the sensor, enter the WP9038ADAM AI terminal, and reference back through the shared GND/AGND line to complete the parsing track.
• Deploy Flyback Diodes on Inductive Loads: The open-collector DO channels handle DC loads up to 500mA comfortably. However, if you are driving inductive components such as magnetic solenoids or mechanical relay coils, always wire a clamping flyback diode (e.g., 1N4007) in parallel with the load coil (cathode to the positive rail, anode to the DO pin). Failing to isolate the inductive voltage spike generated upon turn-off will rapidly punch through and fry the module's output transistors.
• Managing Default Address Recovery: When stacking multiple units together on the same RS-485 bus line, write down the unique slave ID assigned to each unit. If you lose track of the module's baud rate or Modbus device address, disconnect it from the network and connect it individually to an RS-485-to-USB converter. Use a simple serial scanning tool or the official Wellpro utility to read register data or force the device back to its default address configuration.
