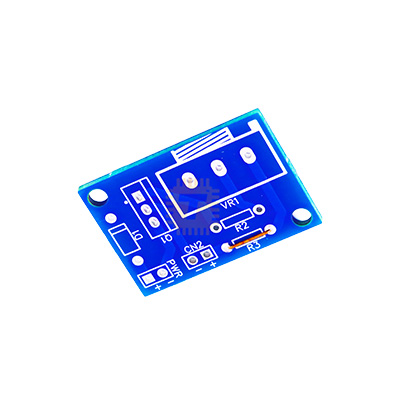

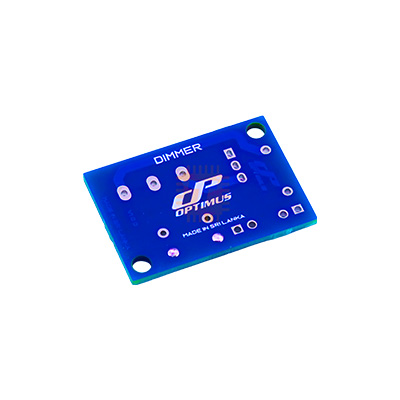

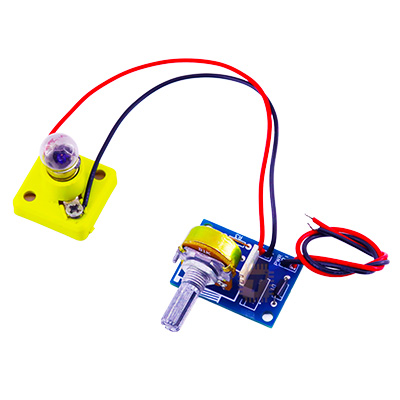

The Dimmer DIY Kit is an entry-level DC current controller designed to teach the basics of transistor-based current regulation. Using a D313 NPN power transistor, the kit allows users to smoothly adjust the brightness of a 3.5V bulb by varying the base current. This hands-on project demonstrates how a small input current can control a larger load, making it ideal for learning how transistors operate as current amplifiers.

Key features

• Smooth brightness control of a 3.5V bulb
• Uses a D313 NPN transistor for current regulation
• Adjustable via a volume controller for easy experimentation
• Simple circuit with readily available components
• Demonstrates transistor function as a current amplifier

Specifications

• Operating voltage: 5V DC
• Load: 3.5V torch bulb
• Control: Variable resistor
• Transistor: D313 NPN
• Circuit type: Basic transistor dimmer

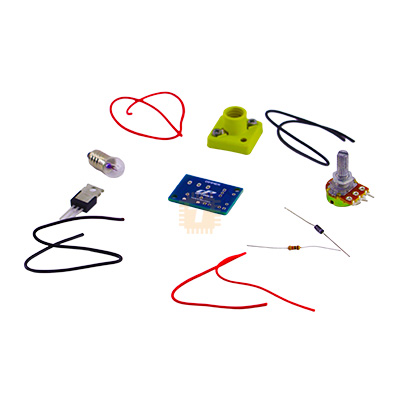

• Components: Easily available, beginner-friendly

Typical applications

• Educational demonstrations in schools and labs
• Learning basic transistor and analog circuit concepts
• DIY electronics hobby projects
• Practice project for circuit assembly and testing
• Understanding brightness control and current variation
• Foundation project before microcontroller-based dimmers
